Farmers Talk. We Listen.

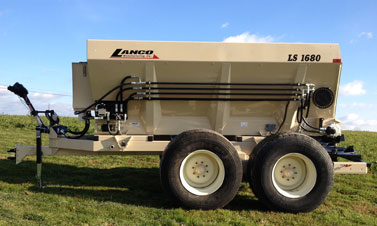

The family of Lanco Lime Spreaders includes 2-ton, 5 ton and 8-ton sizes, each with both PTO and Ground Drive capabilities. That’s because farmers told us that it’s more convenient to have a spreader that will work with any tractor that is available when it’s time to spread.

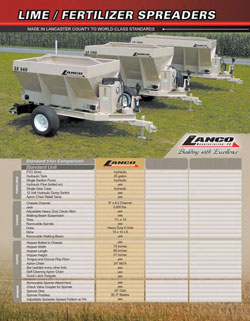

download spec sheet download owners manual
http://lancoequipment.com/images/uploads/Lime_Truck_Mount.jpg

Farmers Talk. We Listen.

The family of Lanco Lime Spreaders includes 2-ton, 5 ton and 8-ton sizes, each with both PTO and Ground Drive capabilities. That’s because farmers told us that it’s more convenient to have a spreader that will work with any tractor that is available when it’s time to spread.

download spec sheet download owners manual
World-Class Equipment & World-Class Features
  • http://lancoequipment.com/images/uploads/lime_features_hydraulic.jpg

    Engine Hydraulic Unit

  • http://lancoequipment.com/images/uploads/Lime-RemovableSpinners.jpg

    Removable Spinners

  • http://lancoequipment.com/images/uploads/lime_features_poc.jpg

    P.O.C. Controller

  • http://lancoequipment.com/images/uploads/lime_features_heavyduty.jpg

    Heavy Duty Built

  • http://lancoequipment.com/images/uploads/lime_features_hydraulic2.jpg

    Advanced Hydraulic System

  • http://lancoequipment.com/images/uploads/Lime-Spinner_2.jpg

    Adjustable Spinners

Specifications LS-540 LS-1150 LS-1680
Weight 2,300 lbs. 2,920 lbs. 4,200 lbs.
Payload 8,300 lbs. 14,920 lbs. 20,280 lbs.
Struck 65 cu. ft. 115 cu. ft. 168 cu. ft.
Overall Width 67" 78" 90"
Overall Height 72" 79" 86"
Overall Length 157" 175" 201"
Lanco Manufacturing Standard Deluxe Features
Drive PTO Hydraulic Drive Self contained hydraulic system
Drive Check Valve Coupler For free wheel stopping; longer lasting hydrualic motor
Drive Hydraulic Pipe Bolted on for easy serviceability
Drive Hydraulic Single Gear Case with one hydraulic motor for more power
Drive 12 Volt Hydraulic Dump Switch 12 Volt DC Apron on/off switch which minimizes equipment wear
Drive Larger Hydraulic Tank 25 Gallon capacity
Drive Hydraulic Relief Valve For web blockage
Apron Self-cleaning Apron Chain Self-cleaning Apron Chain
Apron Bar Welded Every Other Link 667X chain and welded 3/8" x 1 1/4" x 18 1/2" bar with self cleaning design
Apron Spaced Apron Slat 3 1/4" spaced for smoother spread patterns
Body Hopper 74" hopper / hopper is bolted to chassis
Body Rear Panel Sloped - no compacting or clogging
Body Steeper Sloped Hopper Side 60 degree slope for easier flow
Body Heavy Duty Poly Floor "no warp", "no rust" and "no rot" poly floor
Body "Quick Latch" Endgate Easy Adjustable Endgate
Spinners Removable Spinner Attachment "quick attach" for easy adjustment or removal
Spinners Spinner Disk double spinner disk; (24", 3 1/6" Steel plate)
Spinners Spinner Blades (6) 5" blades per disk (3 1/6" Steel plate)
Spinners Heavy Duty Skid Plate protect spinner motors
Chassis Heavy Duty Jack 5,000 lb. capacity
Chassis Heavy Duty Clevis Hitch Heavy duty design no separating
Chassis Heavy Duty Walking Beam Suspension 5 ton with 11L x 15 x 8 Ply Tire (Model 1150)
Chassis Heavy Duty Walking Beam Suspension 8 ton with 16.5 x 16.1 x 10 Ply Tire (Model 1680)
Chassis Heavy Duty Hub 6 Hole Model 1150
Chassis Heavy Duty Hub 8 Hole Model 1680
Chassis Removable Spindle Easy removable spindle for easy maintenance and less "down time"
Chassis Heavy Duty Channel 6" x 8.2 Channel
Lanco Manufacturing Options
Tires T95 - Flotation Tires 19L x 16.1 x 10 Ply Tires
Tires T87 - Flotation Tires 21.5L x 16.1 x 10 Ply Tires
Tires T60 - Trelleborg Tires 520-50-17-20.5 wide (for 8 bolt) studded tires
Tires T90 - Aircraft Aircraft Tires (37-14 x 15 22 Ply)
Tires T80 - Flotation Tires 31-1350 x 15SL-8 Ply - less compaction
Body B60 - Transport Light package brake and turning signals
Body B52 - Rollover Tarp w/Manual Crank front to back; manual; Shur-lok brand; keeps material inside hopper
Body B51 - Mesh Tarp w/Manual Crank front to back; manual; Shur-lok brand; keeps material inside hopper
Body B50 - Flap Tarp w/Bungee Eyelets keeps material inside hopper
Body B31 - Hydraulic Endgate hydraulic endgate adjustment
Body B81 - Heavy Duty V Baffle for lime spreading; bolted onto side panel; less stress on web chain
Body B15 - Walking Beam Tandem Axle with 4 - 11L-15 8 Ply Tires
Body B90 - Surge Brakes / 2 Wheel 2 wheel surge brakes
Body B20 - Extra Wide Axle customized extra wide axle for steep and rough terrain
Body B40 - Extension Support Posts to attach side extension
Body B95 - Safety Chain safety tow chain
Drive D30 - Constant Velocity Shaft less stress on PTO Shaft while turning
Drive D40 - Engine Hydraulic Unit drive via engine self contain hydraulic unit
Drive D22 - Hydraulic Pump 1000 RPM hydraulic pump in lieu of 540 RPM
Conveyor C20 - Cross Conveyor Attachment (L or R) with two-way discharge; used to spread material out ot the side of spreader; used to feed livestock; used to spread sand or shavings in free stalls
Conveyor C30 - Discharge Deflector (2nd Side) material deflector for conveyor attachment
Conveyor C40 - Hopper Chute grain unloading chute
Remote R40 - Raven or Midtech Electronic Variable Rate Control ground speed material regulation
Remote R20 - GPS Electronic Variable Rate Control satellite material regulation
Remote R50 - POC Controller designed by Lanco to be more user-friendly; regulates material according to the ground speed without the use of a press wheel; less expense then Rave and Midtech; also can be used to unload material while stationary; no wheel slippage and low maintenance of gear box, chains and sprockets.
Apron A30 - Self-Cleaning Apron / 1" Slat Spacing slat welded every link for more consistent flor for finer material
Download Shopping List

Compare Our Lime Spreaders!

We invite you to download a shopping list to compare the features of our Lime Spreaders with other manufacturers.
